3650 3900kv Brushless Motor ESC with 60A ESC & Programming Card Combo for 1/10 RC Car Truck Pack of 2 N5621
3650 3900kv Brushless Motor ESC with 60A ESC & Programming Card Combo for 1/10 RC Car Truck Pack of 2 N5621
Motor ESC combination：Complete 3650 3900KV sensorless brushless motor with 60A ESC and programming card, no need for you to match different motors and ESCs anymore, save your time. help your RC truck quickly adjust different modes and speed
Advantages: The motor adopts a 4-pole rotor design, with strong torque and stable output, high hardness aluminum CNC shell, high temperature resistant copper wire, 0.2mm silicon steel sheet, detachable structure for easy cleaning and maintenance. The ESC is waterproof and dustproof all day long, has strong anti-current capability, excellent heat dissipation, and has multiple protection functions. Built-in switch mode BEC 5.8V/3A, compatible with high torque
Multiple protection functions: The upgraded 3900kv motor built-in temperature sensor and ESC can realize motor overheating protection, lithium or nickel battery low-voltage cut-off protection/ESC overheating protection/throttle signal loss protection/motor blocking protection, which can prevent your The remote control car is overheated and damaged
Material: 4-pole 12-slot high-torque motor adopts 5.0mm alloy steel shaft, 6CNC processing 6061-T high hardness aluminum CNC shell heat sink, high temperature resistant copper wire, 0.2mm silicon steel sheet, with excellent starting and acceleration characteristics, and good insulation quality , Good heat resistance.
Widely compatible: 3650 3900KV brushless motor + 60A ESC and programming card kit compatible with 1/10 RC cars, trucks, off-road vehicles, good speed, sufficient power supply, strong acceleration. Perfect match with 2-3S lithium battery

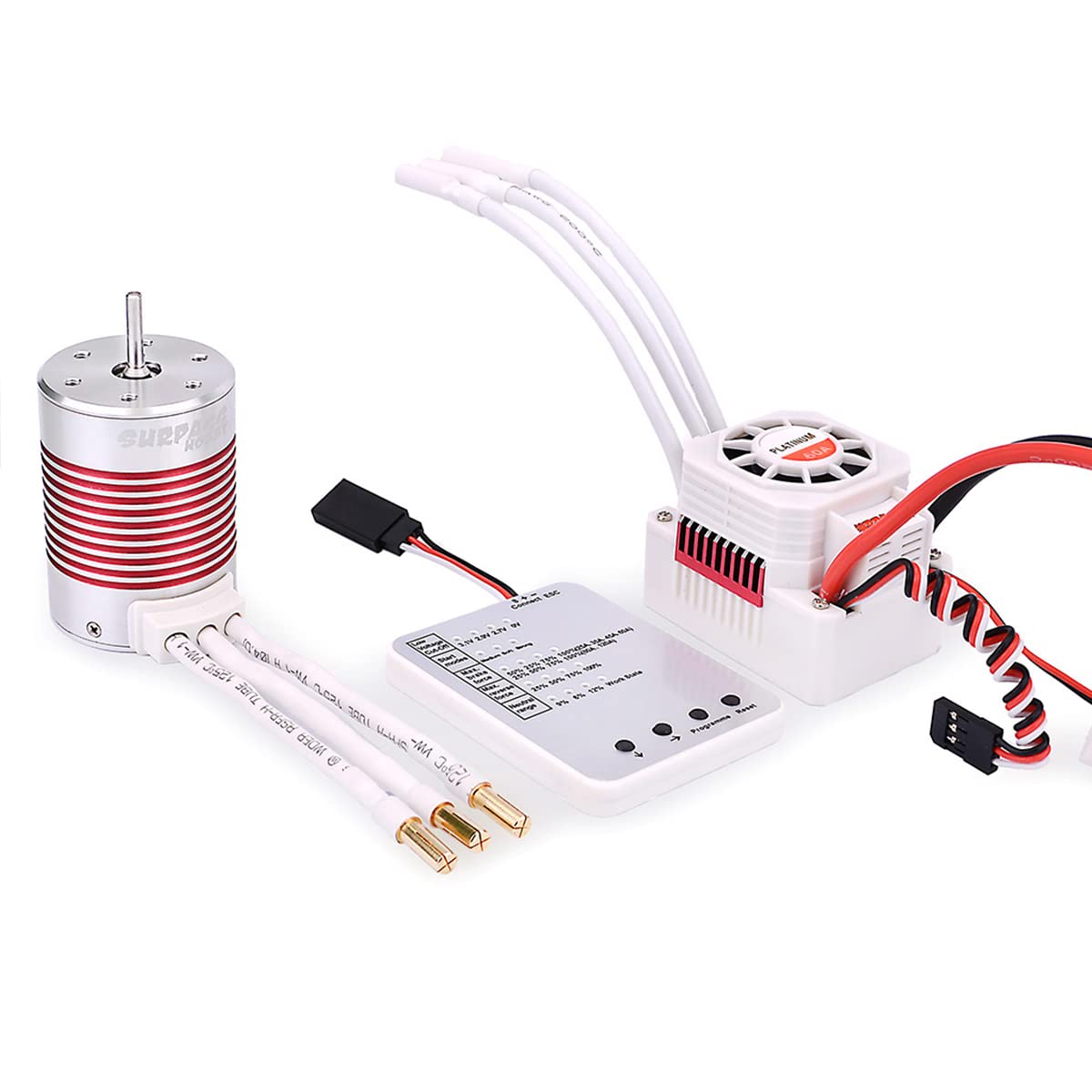

3650 3900KV Brushless Motor and 60A ESC Combo Set and Program Card

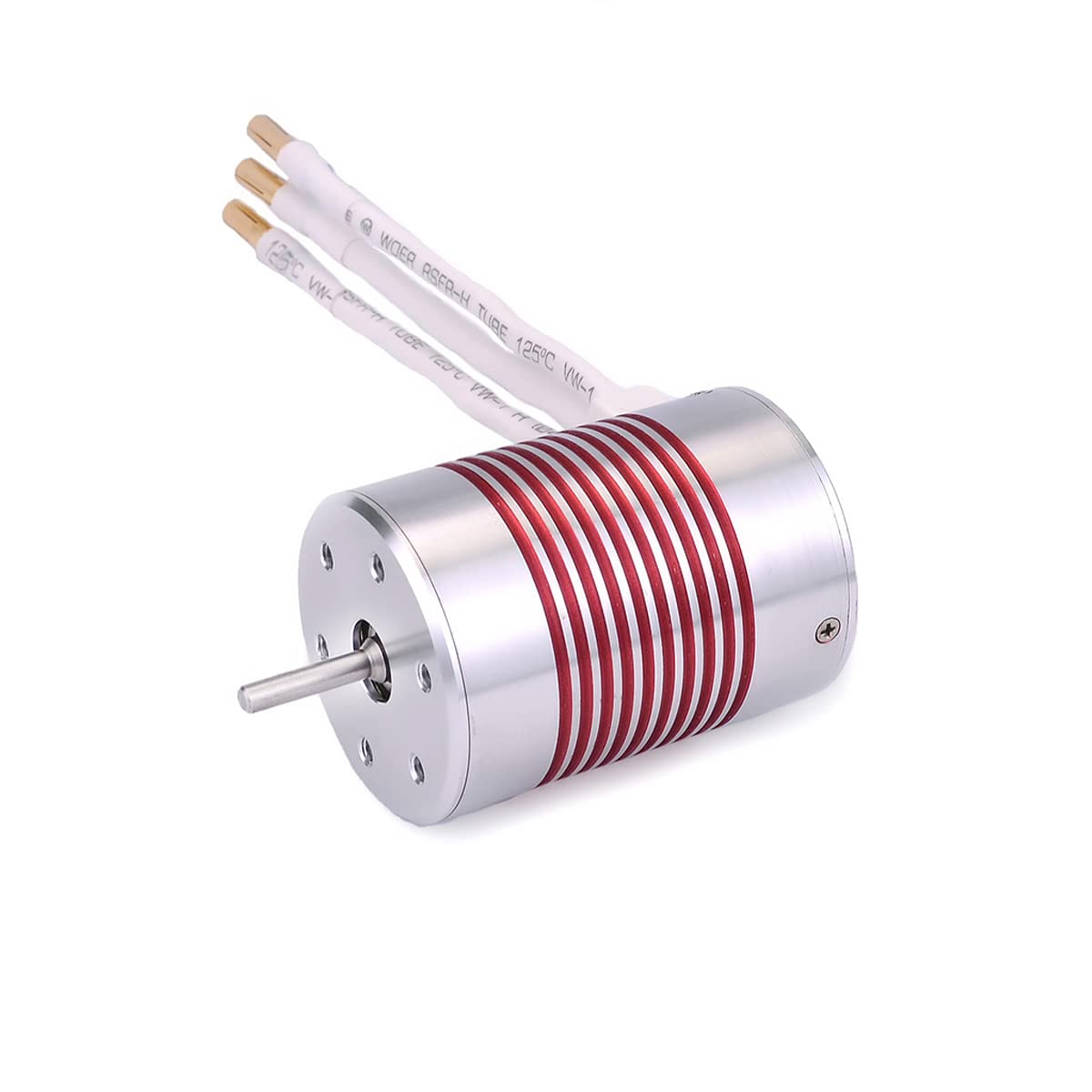

3650 MotorFeatures:
1：4-level 12-slot high-torque motor design, CNC machining billet
2：6061-T6 aluminum heat sink, secondary oxidation treatment, high-end and fine appearance
3：High-purity copper coil, highest efficiency, temperature resistance 180-200 degrees
4：High-speed ABEC5 ultra-durable sealed bearings: low friction, low noise, high precision, and long-lasting use
5：High balance explosion-proof rotor: high smoothness, high accuracy and high speed, dynamic balance control within 10mg，removable/replaceable rotor

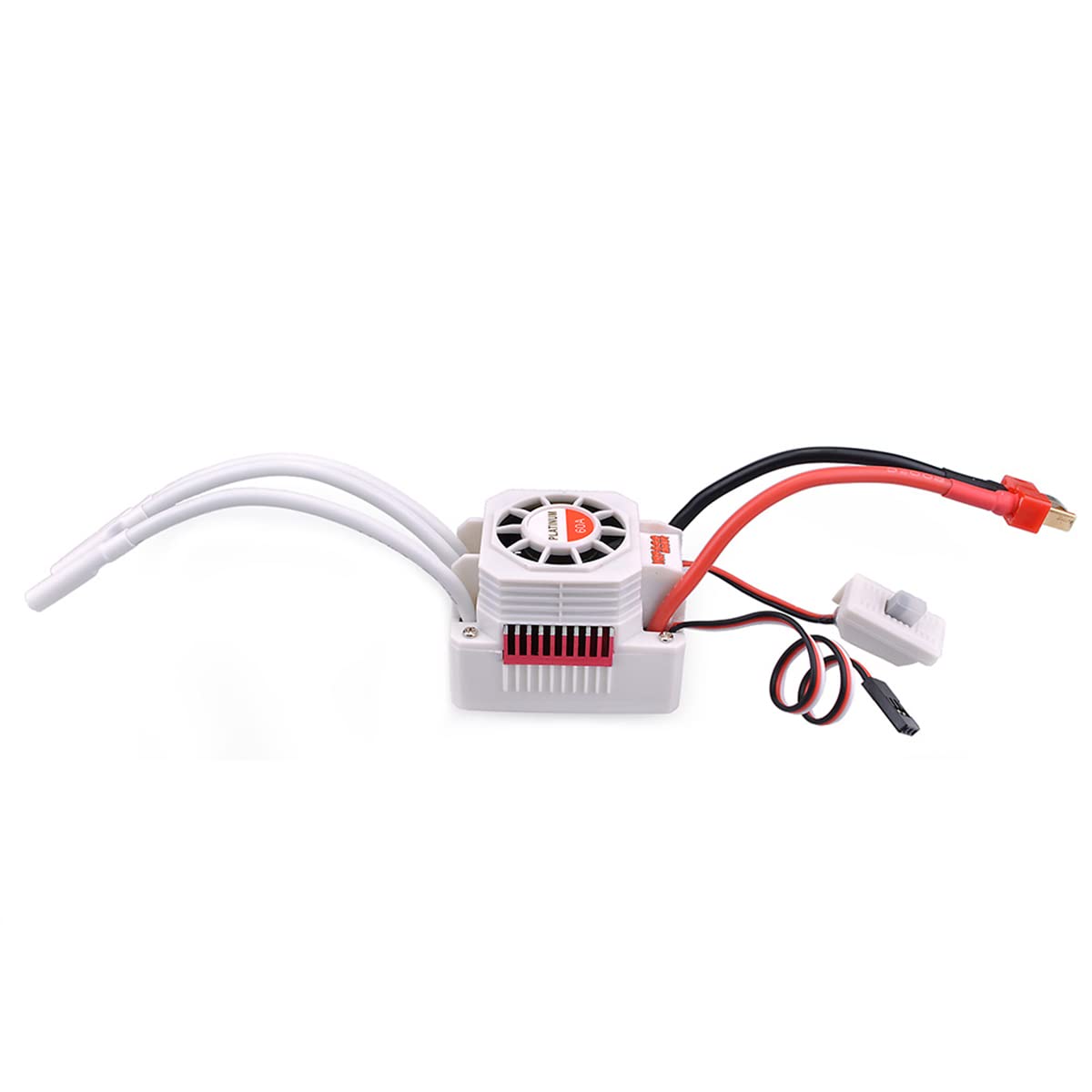

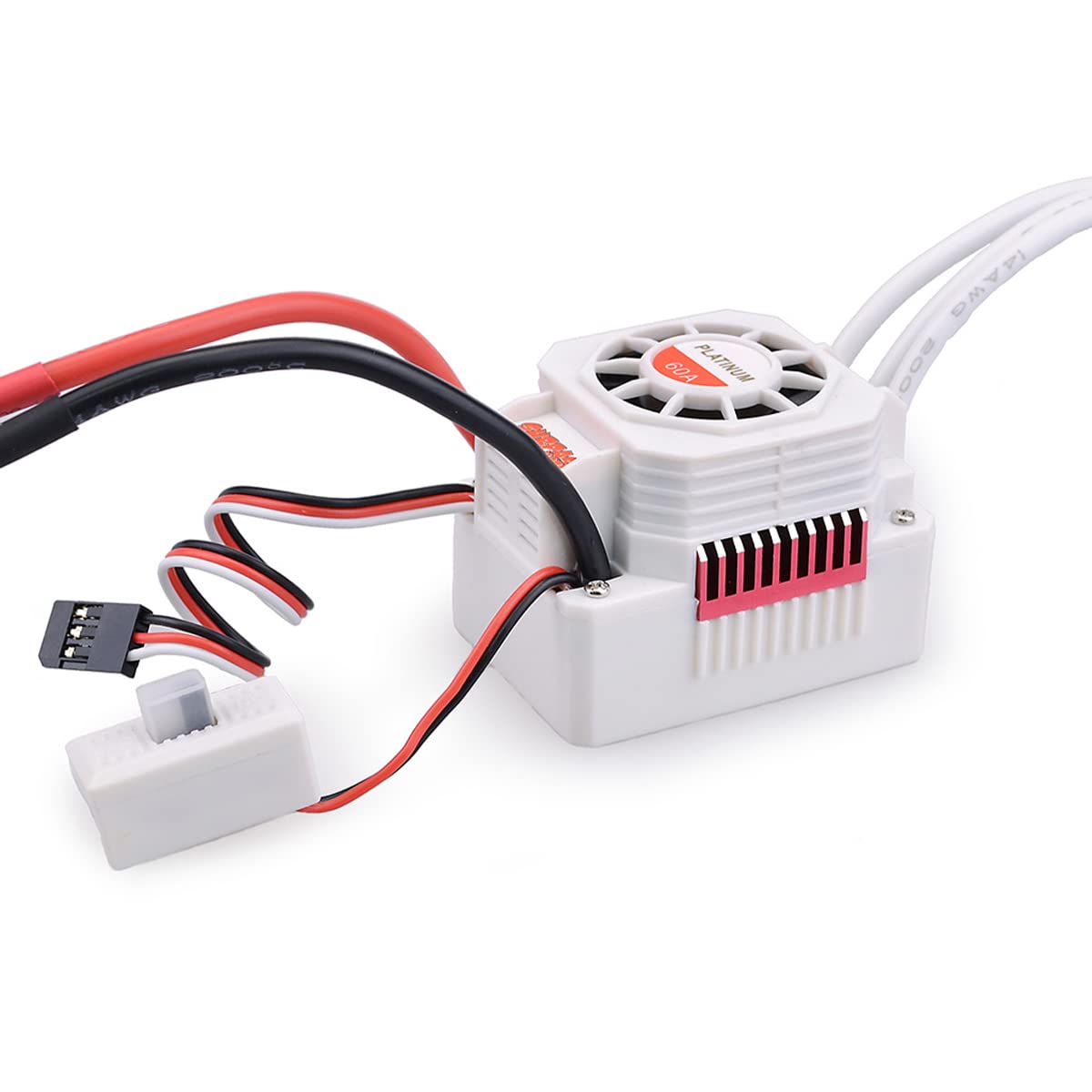

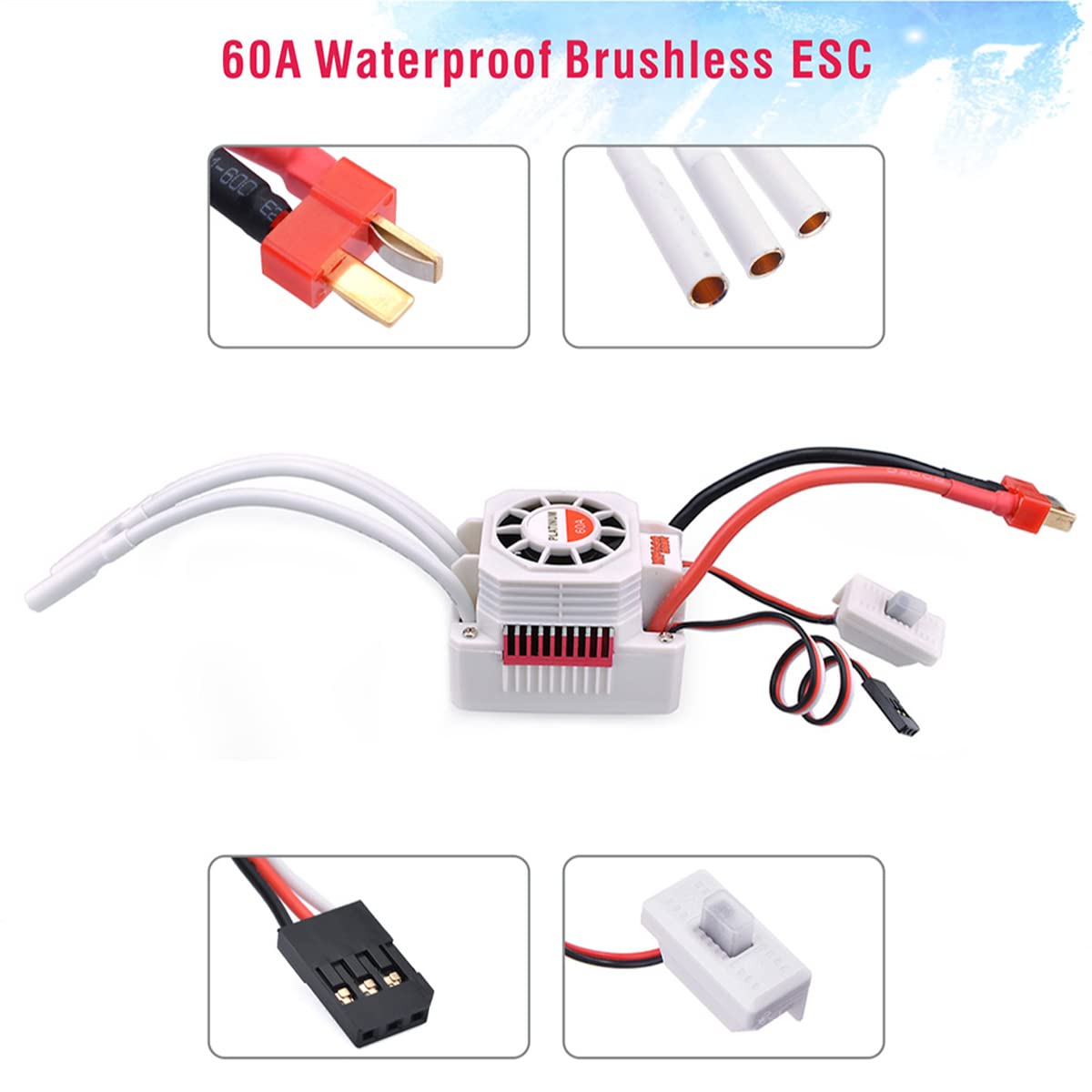

60AWater-proof ESC:
1：ESC is waterproof and dustproof all day long Suitable for all-weather competitions
2：The strong resistant current capability, excellent heat dissipation.
3：Multiple protection features, widely compatible with for 1/10 RC car
4：Built-in switch mode BEC 5.8V/3A, compatible with high torque
Product Specifications:
3900KV Motor:
Watts: 900W
Max voltage: <13V
IO :2.0A
Max RPM: 50000
Max Amps: 69A / KV(RPM/Volt): 3900KV
Diameter: 36mm
Length: 50mm
Shaft length: 15mm
Shaft diameter: 3.175mm
Weight: 180g

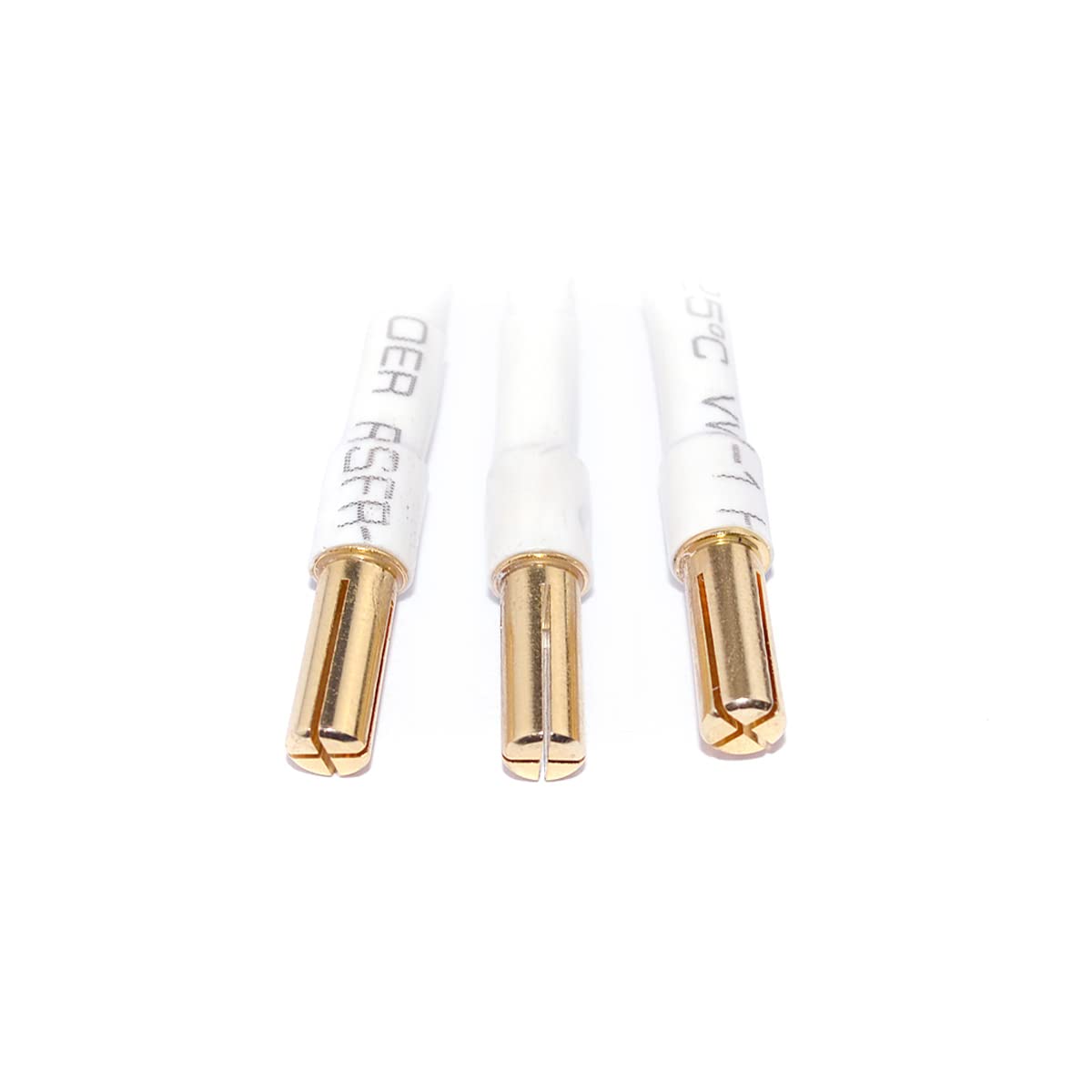

Plug type: 4mm golden banana plug
ESC specifications
Cont/Burst Current: 60A/360A
Motor Type: Sensorless brushless motor
Suitable brushless motor: ≥9T
BEC Output: 5.8V/3A(switch mode)
Battery: 2S -3S battery Lipo/ 4-9cells NiMH
Resistance: 0.0007 ohm
Diamension:50 X 35 X 34mm
Weight: 81g

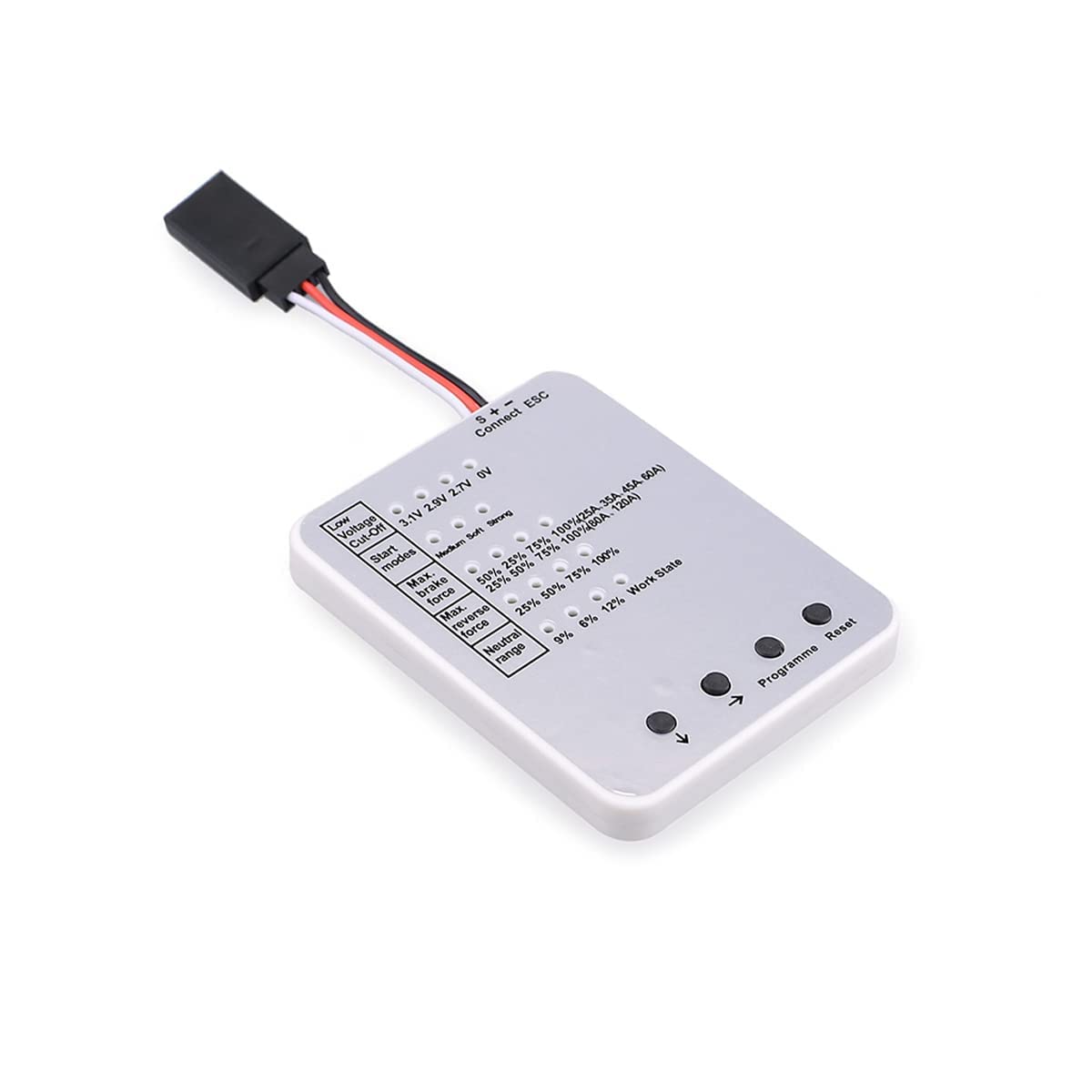

Specifications of RC Programming Card:
Suitable esc: 25A, 35A, 45A, 60A, 80A, 120A ESC
Used with: 1/8,1/10,1/12,1/14,1/16,1/18 rc car
Size: 60x45x6.5mm
Working voltage/currren: 5-6.5V/100mAh

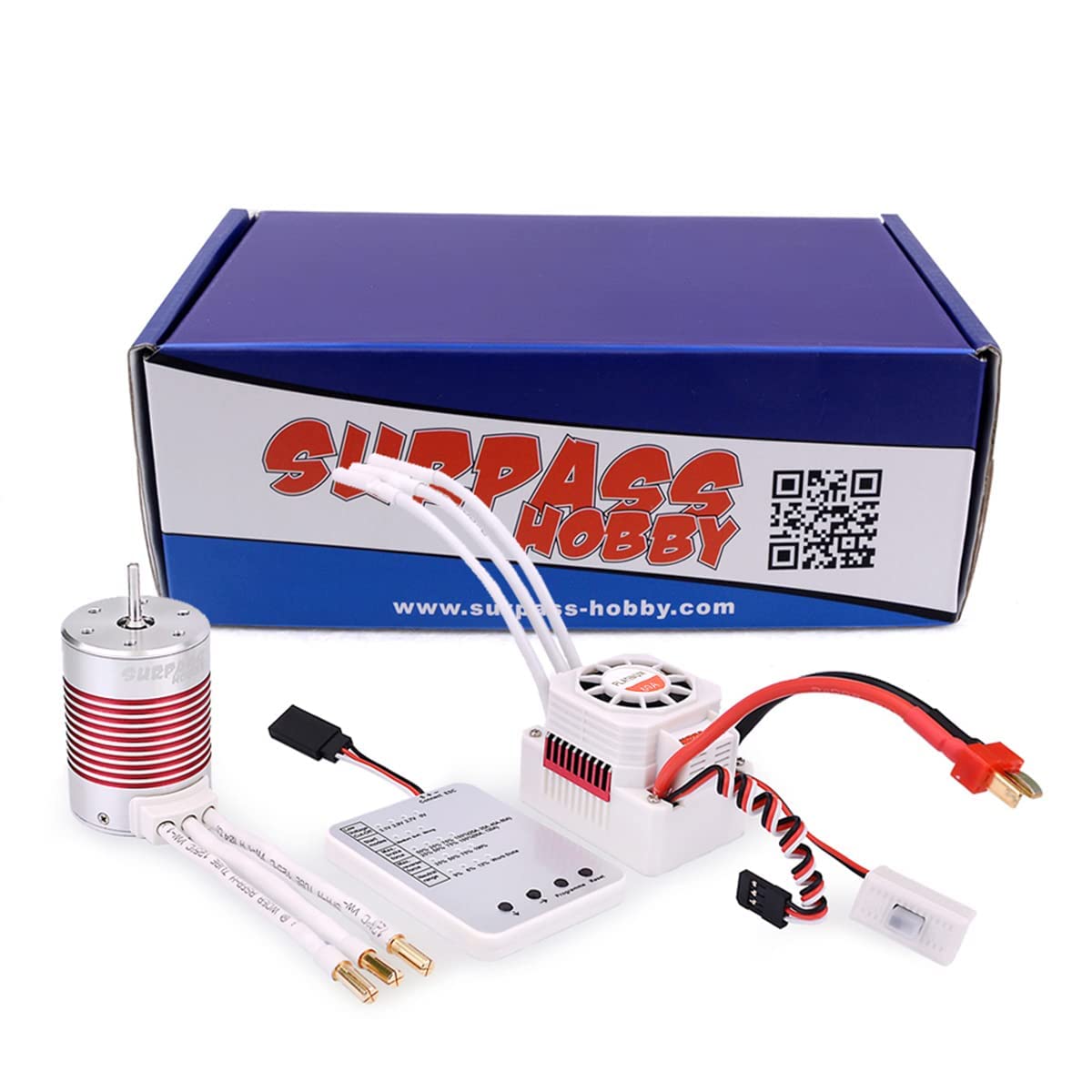

Package Including
1 X 3650 3900KV Sensorless Brushless Motor
1 X 60A ESC
1 X Program Card
